Sotech Optima IPC, Interlocking Pressed Plank Rainscreen

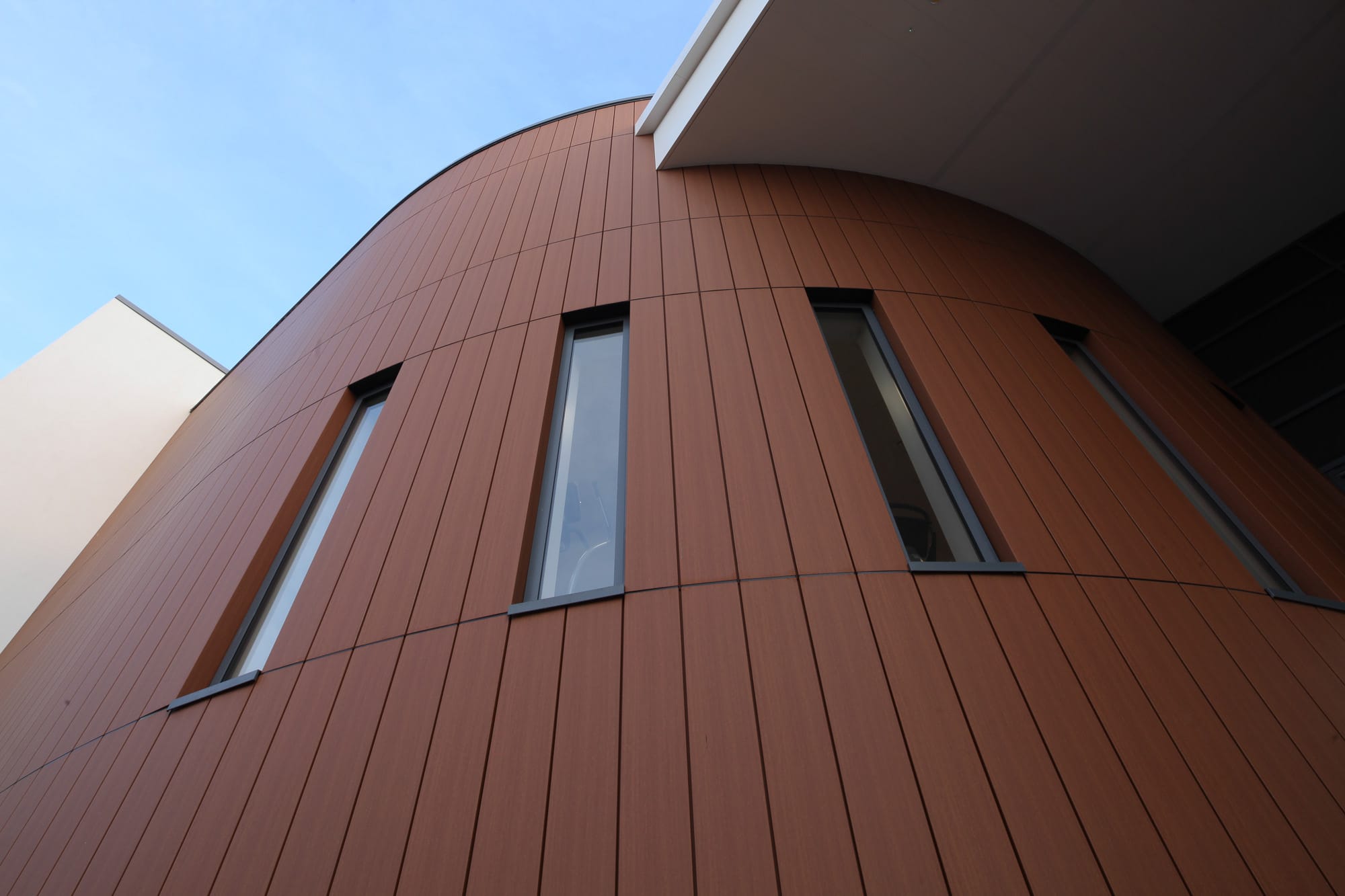

Interlocking wall plank is a simple, interlocking metal cladding panel that with an appropriate secondary support system may be used as part of a rainscreen system.



The planks are connected by a simple interlocking male/female joint, which offers either a recessed or hairline appearance.  The Optima IPC, Interlocking Pressed Plank is secretly fixed onto extruded aluminium support framework horizontally, vertically or diagonally in a variety of materials.

As the longitudinal joint is not ventilated this product can be used as a weathered screen introducing ventilation at the base of a wall and at the top or some ventilation can be introduced at the cross plank joints by leaving a gap with the support structure behind creating a baffle.

Why Choose Optima IPC?

Recessed or Hairline Appearance

The metal planks are connected by a simple interlocking male/female joint, which offers either a recessed or hairline appearance.

Weather Shield

Optima IPC Pressed Plank is secretly fixed onto extruded aluminium support framework horizontally, vertically or diagonally in a variety of materials. This drained and ventilated system creates a weather shield in front of a primary structure.

Seamless Integration

Optima IPC Pressed Plank is engineered to seamlessly integrate with all other building façade elements such as windows, doors and louvres.

CWCT Certified

The system has been independently tested and certified to meet CWCT rigorous specification for rainscreen cladding. All fixings used in the system should be stainless steel.

Materials Available

Featured Project



Sheffield University’s Multi-Story Carpark

Sotech provided over 2000sqm of Aluminium Rainscreen for Sheffield University’s new multi-story carpark.  The scheme included Sotech Optima IPC interlocking plank in an anodized finish and Optima FC Secret Fix Rainscreen and bespoke perforated panels in a ppc finish.

Optima IPC, FC and bespoke perforated panels were chosen as they achieved the necessary joint widths and aesthetics to satisfy the design. Sotech perforations were chosen as they allowed the required free area for the car park ventilation and they were pre-punched then post coated with a ppc finish.

Sheffield University Car Park Aluminium Cladding

Sheffield University Car Park Aluminium Cladding

Sheffield University Car Park Aluminium Cladding

Need a sample?

To request a sample, arrange an appointment or ask a question:

Phone

Call +44 (0) 191 587 9213

Benefits

Optima IPC

The pressed metal plank is available in a variety of materials and thicknesses up to 2mm enabling greater module sizes far in excess of the limitations found in some rolled systems.

A fully independently tested and accredited system to CWCT standards and fully compliant to NHBC requirements.

Flashings and ancillary products available such as copings, fascia soffit, column casings, solar shading and architectural features.

Panels are fixed using wafer head, self-tapping stainless steel screws through pre-punched holes.

Panels can be fixed to a simple top hat or timber baton of minimum 38mm depth to create ventilation with a cladding zone as shallow as 90mm.

Components meet the requirements of Class 0 fire performance in accordance with building regulations.

Substructure

BRACKET AND RAIL BUILDUP FOR CONVENTIONAL BACKING WALLS AND EXTERNAL INSULATION:

Easy installation - refer to installation guide for wall type build up.

Panels can be fixed to a simple top hat or timber baton of minimum 38mm depth to create ventilation with a cladding zone as shallow as 90mm.

System allows ventilation zone to be minimum stipulated by CWCT.

Secret fix interlocking system.

Consult Sotech regarding structural restrictions, and constraints relating to panel size, fastener type frequency of fixings.

ECO RAIL BUILDUP FOR SIPS OR COMPOSITE PANEL BACKING WALL WITH NO REQUIREMENT FOR EXTERNAL INSULATION:

Easy installation - refer to installation guide for wall type build up.

Suitable for all types of wall constructions either new build or refurbishment.

A fully adjustable system.

Varying lengths of hands-free brackets together with angles and tee profiles allows adjustability in all planes to line and level cladding zones from 140mm above insulation thickness to a maximum of 350mm.

Panels are fixed using wafer head, self-tapping stainless-steel screws through pre-punched holes.

Ventilation zone behind panels often must exceed CWCT minimum requirements to accommodate structural rails.

Consult Sotech regarding structural restrictions, and constraints relating to panel size, fastener type frequency of fixings.

Case Studies

Testing / Warranty

Safety has always been our primary concern. Sotech’s commitment to authentic engineering capability has been witnessed over several years in the testing of products as they are being developed. All Sotech Optima Rainscreen has been witnessed and certified by CWCT for wind serviceability and safety, air permeability and water penetration. We have completed several successful fire tests and welcome and encourage full scale system testing.
