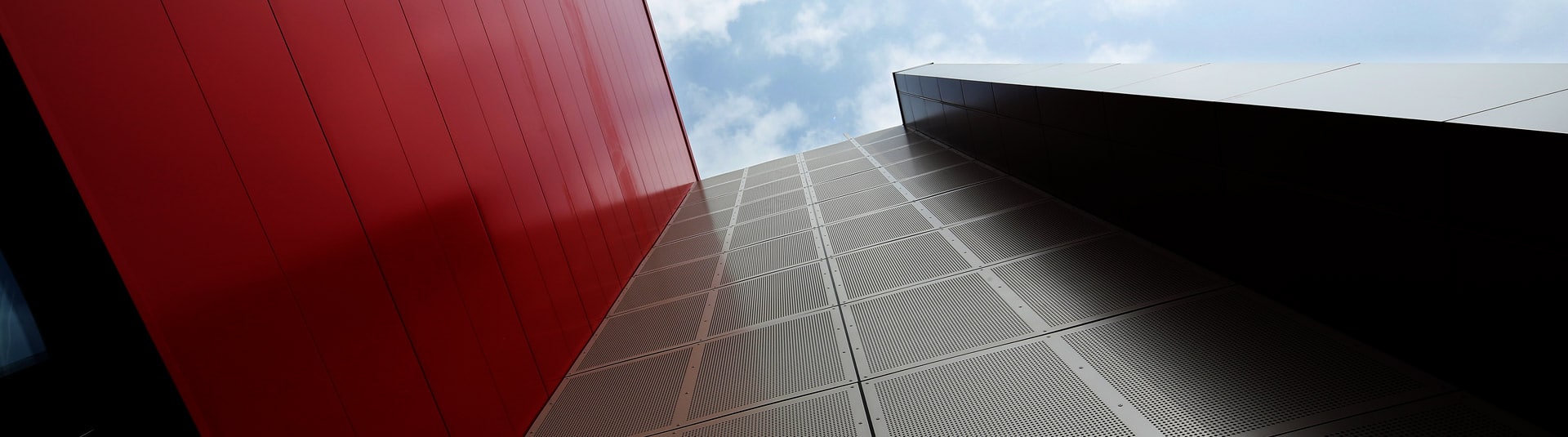

The Optima Perforated Screen

The Optima Perforated Screen provides a solution for enclosing spaces such as car parks, plant rooms and feature cladding. This can be created from Optima TFC, FC or flat plate overclad Rainscreen.

Why Choose Optima Perforated Rainscreen?

Secret Fixing

Optima FC rainscreen cladding has been developed as a carrier and panel system allowing for secret fixing of panels.

Versatility

Its versatility is such that a multitude of materials and thicknesses (from 0.7mm to 4mm) may be used on one universal carrier.

Cosmetically Flat

Regardless of material or thickness used, the superior design and manufacturing techniques employed maintain a cosmetically flat and uniform appearance.

Weather Shield

This drained and ventilated system consists of a baffle-jointed series of panels that creates a weather shield in front of a primary structure.

CWCT Certified

The system has been independently tested and certified to meet CWCT rigorous specification for rainscreen cladding.

Economical

Optima TFC has been developed as an economical alternative to a complete secret fix rainscreen.

Seemless Integration - FC

Optima FC rainscreen cladding is engineered to seamlessly integrate with all other building façade elements such as windows, doors and louvres.

Seamless Integration - TFC

Optima TFC is engineered to seamlessly integrate with all other building façade elements such as windows, doors and louvres. All fixings used in the systems are stainless steel.

No Build-up of Metal Thickness

Whilst being the most economical rainscreen solution, requiring discreet fixings in the vertical panel recess, the engineering of the system retains the benefits of a drained and ventilated façade. Superior manufacturing techniques ensure there will be no build-up of metal thicknesses at the cruciform joint.

Materials Available

Featured Project

The stunning new £60 million first direct Arena in the northern quarter of Leeds operated by SMG Europe, features Sotech’s back-lit perforated panels which light up the Leeds skyline with a kaleidoscope of ever-changing colours, producing a dazzling honeycombed external façade on what is believed to be the first ‘fan shaped’ arena in the UK.

Sotech achieved an economical and integrated solution for over 400 square metres of aluminium feature producing the 9mm perforations with the use of a sophisticated cluster tool enabling a number of holes to be punched simultaneously across a wide and complex variation of shapes and sizes.

Leeds Arena First Direct

  Leeds Arena First Direct

Benefits

Cluster tools are used to provide an economic solution, a series of standard patterns are available which show the visual appearance plus percentage fee air.

Perforations are a bespoke solution which is an additional feature of our existing rainscreen systems, refer to features and benefits from the Optima Rainscreen Range.

Perforations are introduced to the panel system when there is a requirement for air flow or daylight into an enclosure such as car parks, plant rooms etc.

There is an opportunity to create a great variety of bespoke perforated patterns that are possible with the use of standard or specialised tooling.

Ashings and ancillary products available such as copings, fascia soffit, column casings, solar shading and architectural features Substructure for external insulation.

Aluminium rainscreen with the appearance of patinated copper, zinc look, corten, concrete, timber, stainless steel look.

Substructure

Substructure for external insulation



Easy installation, refer to installation guide for wall type build up.



Suitable for all types of wall constructions either new build or refurbishment.



A fully adjustable system.



Varying lengths of hands free brackets together with angles and tee profiles allows adjustability in all planes to line and level cladding zones from 110mm above insulation thickness to a maximum of 320mm.



Panels have polyethylene anti rattle clips attached to the back retaining flange, these connect with the hooks on the substructure.



Ventilation zone behind panels often has to exceed CWCT minimum requirements to accommodate structural rails.



Consult Sotech regarding structural restrictions, and constraints relating to panel size, fastener type frequency of fixings.

Substructure for Rainscreen fitted to Sips or Insulated Panels



Easy installation, refer to installation guide for wall type build up.



Panels can be fixed to a simple Eco FC Carrier of minimum 38mm depth to create ventilation with a cladding zone as shallow as 90mm.



System allows ventilation zone to be minimum stipulated by CWCT.



Panels have polyethylene anti rattle clips attached to the back retaining flange, these connect with the hooks on the substructure.



Consult Sotech regarding structural restrictions, and constraints relating to panel size, fastener type frequency of fixings.

Case Studies

Testing / Warranty

Sotech’s commitment to authentic engineering capability has been witnessed over several years in the testing of products as they are being developed.



From the earliest Optima TFC designs tested at BRE, Garston for wind serviceability and safety, air permeability and water penetration for Erie Basin, Manchester project.

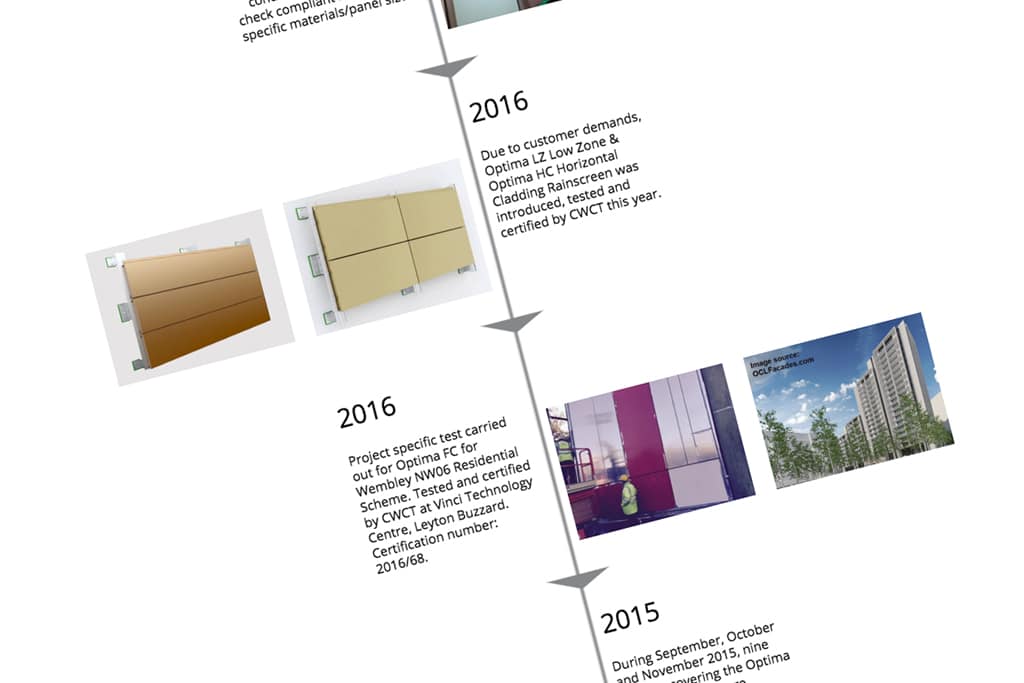

TESTING & WARRANTIES TIMELINE

All certificates are available on request.

Downloads

FC Optima

Download the full system details:

ALL SYSTEM DOWNLOADS

Bim Objects

Optima Rainscreen is BIM ready

Sotech as a manufacturer within the construction industry is striving to provide our clients with accurate digitised product information to help and support our customers and other stakeholders to drive BIM forward.

LEARN MORE

Accreditations

Sotech Accreditations

Speak to an expert

If you require advice with design detail, assistance with a specification or to discuss your project in detail contact our technical department who have over 35 years experience in the construction industry. The team is on hand to provide knowledge and support at every stage of your project.
